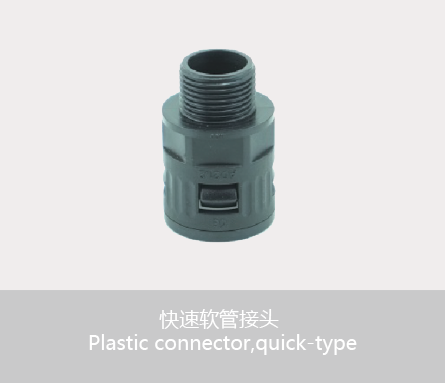

快速软管接头 IP66
HGS
颜色：黑色和灰色
结构：接头主体有六角扳手面，内部有咬合套。
材料：尼龙（PA）
温度：-40℃~115℃
阻燃等级: V2（UL94）
防水等级: IP66
产品介绍：接头主体和咬合套等配件设计合理，保证接头和软管之间能紧密装配。通过压紧咬合套可以拆卸接头。接头能有效防止油、酸等溶剂及灰尘的进入。不含卤素、硅、镉。
应用范围：对工业电气装置进行绝缘、隔热、隔离保护。
产品参数
HGS-M
| 产品编号 | 产品编号 | 适配软管 | 螺纹规格 | 螺纹长度 | 孔径 | 外径 | 整体长度 |
| 黑色 | 灰色 | 外径Φ | 公制 M | C mm | ΦI mm | ΦB mm | D mm |
| HGS-M10B-AD10.0 | HGS-M10G-AD10.0 | AD10.0 | M10 X 1.5 | 12.0 | 6.0 | 17.0 | 35.0 |
| HGS-M12B-AD10.0 | HGS-M12G-AD10.0 | AD10.0 | M12 X 1.5 | 12.0 | 7.0 | 17.0 | 35.0 |
| HGS-M12B-AD13.0 | HGS-M12G-AD13.0 | AD13.0 | M12 X 1.5 | 12.0 | 7.0 | 20.0 | 37.0 |
| HGS-M16B-AD13.0 | HGS-M16G-AD13.0 | AD13.0 | M16 X 1.5 | 12.0 | 10.0 | 20.0 | 37.0 |
| HGS-M16B-AD15.8 | HGS-M16G-AD15.8 | AD15.8 | M16 X 1.5 | 12.0 | 11.5 | 23.0 | 39.5 |
| HGS-M18B-AD15.8 | HGS-M18G-AD15.8 | AD15.8 | M18 X 1.5 | 12.0 | 12.0 | 23.0 | 39.5 |
| HGS-M20B-AD18.5 | HGS-M20G-AD18.5 | AD18.5 | M20 X 1.5 | 13.0 | 14.5 | 26.0 | 42.0 |
| HGS-M20B-AD21.2 | HGS-M20G-AD21.2 | AD21.2 | M20 X 1.5 | 13.0 | 15.5 | 29.5 | 45.0 |
| HGS-M22B-AD21.2 | HGS-M22G-AD21.2 | AD21.2 | M22 X 1.5 | 13.0 | 17.0 | 29.5 | 45.0 |
| HGS-M24B-AD21.2 | HGS-M24G-AD21.2 | AD21.2 | M24 X 1.5 | 13.0 | 15.5 | 29.5 | 45.0 |
| HGS-M25B-AD21.2 | HGS-M25G-AD21.2 | AD21.2 | M25 X 1.5 | 13.0 | 15.5 | 29.5 | 45.0 |
| HGS-M25B-AD25.5 | HGS-M25G-AD25.5 | AD25.5 | M25 X 1.5 | 13.0 | 20.5 | 34.0 | 46.5 |
| HGS-M25B-AD28.5 | HGS-M25G-AD28.5 | AD28.5 | M25 X 1.5 | 13.0 | 20.5 | 37.0 | 47.0 |
| HGS-M27B-AD28.5 | HGS-M27G-AD28.5 | AD28.5 | M27 X 2.0 | 13.0 | 22.5 | 37.0 | 47.0 |
| HGS-M30B-AD28.5 | HGS-M30G-AD28.5 | AD28.5 | M30 X 1.5 | 13.0 | 23.5 | 37.0 | 47.0 |
| HGS-M32B-AD28.5 | HGS-M32G-AD28.5 | AD28.5 | M32 X 1.5 | 13.0 | 23.5 | 37.0 | 47.0 |
| HGS-M32B-AD34.5 | HGS-M32G-AD34.5 | AD34.5 | M32 X 1.5 | 15.0 | 26.0 | 44.0 | 51.0 |
| HGS-M33B-AD34.5 | HGS-M33G-AD34.5 | AD34.5 | M33 X 2.0 | 15.0 | 26.0 | 44.0 | 51.0 |
| HGS-M36B-AD34.5 | HGS-M36G-AD34.5 | AD34.5 | M36 X 2.0 | 15.0 | 30.0 | 44.0 | 51.0 |
| HGS-M40B-AD34.5 | HGS-M40G-AD34.5 | AD34.5 | M40 X 1.5 | 15.0 | 30.0 | 44.0 | 51.0 |
| HGS-M40B-AD42.5 | HGS-M40G-AD42.5 | AD42.5 | M40 X 1.5 | 15.0 | 33.0 | 52.0 | 54.0 |
| HGS-M42B-AD42.5 | HGS-M42G-AD42.5 | AD42.5 | M42 X 2.0 | 15.0 | 35.0 | 52.0 | 54.0 |
| HGS-M48B-AD42.5 | HGS-M48G-AD42.5 | AD42.5 | M48 X 2.0 | 15.0 | 36.5 | 52.0 | 54.0 |
| HGS-M50B-AD42.5 | HGS-M50G-AD42.5 | AD42.5 | M50 X 1.5 | 15.0 | 36.5 | 52.0 | 54.0 |
| HGS-M50B-AD54.5 | HGS-M50G-AD54.5 | AD54.5 | M50 X 1.5 | 16.0 | 43.0 | 64.0 | 55.0 |
| HGS-M56B-AD54.5 | HGS-M56G-AD54.5 | AD54.5 | M56 X 2.0 | 16.0 | 48.0 | 64.0 | 55.0 |
| HGS-M60B-AD54.5 | HGS-M60G-AD54.5 | AD54.5 | M60 X 2.0 | 16.0 | 48.0 | 64.0 | 55.0 |
| HGS-M63B-AD54.5 | HGS-M63G-AD54.5 | AD54.5 | M63 X 1.5 | 16.0 | 48.0 | 64.0 | 55.0 |
HGS-PG
| 产品编号 | 产品编号 | 适配软管 | 螺纹规格 | 螺纹长度 | 孔径 | 外径 | 整体长度 |
| 黑色 | 灰色 | 外径Φ | 德制 PG | C mm | ΦI mm | ΦB mm | D mm |
| HGS-PG7B-AD10.0 | HGS-PG7G-AD10.0 | AD10.0 | PG7 | 12.0 | 7.0 | 17.0 | 35.0 |
| HGS-PG9B-AD13.0 | HGS-PG9G-AD13.0 | AD13.0 | PG9 | 12.0 | 10.0 | 20.0 | 37.0 |
| HGS-PG11B-AD15.8 | HGS-PG11G-AD15.8 | AD15.8 | PG11 | 12.0 | 12.0 | 23.0 | 39.0 |
| HGS-PG13.5B-AD18.5 | HGS-PG13.5G-AD18.5 | AD18.5 | PG13.5 | 13.0 | 14.5 | 26.0 | 42.0 |
| HGS-PG16B-AD21.2 | HGS-PG16G-AD21.2 | AD21.2 | PG16 | 13.0 | 14.5 | 26.0 | 42.0 |
| HGS-PG21B-AD25.5 | HGS-PG21G-AD25.5 | AD25.5 | PG21 | 13.0 | 21.0 | 34.0 | 46.5 |
| HGS-PG21B-AD28.5 | HGS-PG21G-AD28.5 | AD28.5 | PG21 | 13.0 | 23.5 | 37.0 | 47.0 |
| HGS-PG29B-AD34.5 | HGS-PG29G-AD34.5 | AD34.5 | PG29 | 15.0 | 30.0 | 44.0 | 51.0 |
| HGS-PG36B-AD42.5 | HGS-PG36G-AD42.5 | AD42.5 | PG36 | 15.0 | 36.5 | 52.0 | 54.0 |
| HGS-PG48B-AD54.5 | HGS-PG48G-AD54.5 | AD54.5 | PG48 | 16.0 | 48.0 | 64.0 | 55.0 |
HGS-G
| 产品编号 | 产品编号 | 适配软管 | 螺纹规格 | 螺纹长度 | 孔径 | 外径 | 整体长度 |
| 黑色 | 灰色 | 外径Φ | 管螺纹 G | C mm | ΦI mm | ΦB mm | D mm |
| HGS-G1/4B-AD10.0 | HGS-G1/4G-AD10.0 | AD10.0 | G1/4 | 12.0 | 7.0 | 17.0 | 35.0 |
| HGS-G3/8B-AD13.0 | HGS-G3/8G-AD13.0 | AD13.0 | G3/8 | 12.0 | 10.0 | 20.0 | 37.0 |
| HGS-G3/8B-AD15.8 | HGS-G3/8G-AD15.8 | AD15.8 | G3/8 | 12.0 | 12.0 | 23.0 | 39.5 |
| HGS-G1/2B-AD15.8 | HGS-G1/2G-AD15.8 | AD15.8 | G1/2 | 12.0 | 14.5 | 23.0 | 39.5 |
| HGS-G1/2B-AD21.2 | HGS-G1/2G-AD21.2 | AD21.2 | G1/2 | 13.0 | 17.0 | 29.5 | 45.0 |
| HGS-G3/4B-AD25.5 | HGS-G3/4G-AD25.5 | AD25.5 | G3/4 | 13.0 | 21.0 | 34.0 | 46.5 |
| HGS-G3/4B-AD28.5 | HGS-G3/4G-AD28.5 | AD28.5 | G3/4 | 13.0 | 23.5 | 37.0 | 47.0 |
| HGS-G1B-AD34.5 | HGS-G1G-AD34.5 | AD34.5 | G1 | 15.0 | 30.0 | 44.0 | 51.0 |
| HGS-G1 1/4B-AD42.5 | HGS-G1 1/4G-AD42.5 | AD42.5 | G1 1/4 | 15.0 | 36.5 | 52.0 | 54.0 |
| HGS-G1 1/2B-AD54.5 | HGS-G1 1/2G-AD54.5 | AD54.5 | G1 1/2 | 16.0 | 48.0 | 64.0 | 55.0 |
