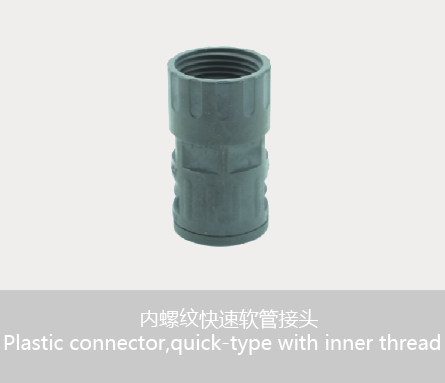

内螺纹快速软管接头 IP68
HGSNR
颜色：黑色和灰色
结构：接头主体有六角扳手面，内部有咬合套。内部带密封圈。
材料：尼龙（PA）、密封圈（TPE）
温度：-40℃~115℃
阻燃等级: V2（UL94）
防水等级: IP68
产品介绍：接头主体和咬合套等配件设计合理，保证接头和软管之间能紧密装配。通过压紧咬合套可以拆卸接头。接头能有效防止油、酸等溶剂及灰尘的进入。不含卤素、硅、镉。内部带密封圈防水等级可达IP68。
应用范围：对工业电气装置进行绝缘、隔热、隔离保护。
产品参数
HGSNR-M
| 产品编号 | 产品编号 | 适配软管 | 螺纹规格 | 螺纹长度 | 孔径 | 外径 | 整体长度 |
| 黑色 | 灰色 | 外径Φ | 公制 M | C mm | ΦI mm | ΦB mm | D mm |
| HGSNR-M10B-AD10.0 | HGSNR-M10G-AD10.0 | AD10.0 | M10 X 1.5 | 12.5 | 7.0 | 17.0 | 36.0 |
| HGSNR-M12B-AD10.0 | HGSNR-M12G-AD10.0 | AD10.0 | M12 X 1.5 | 12.5 | 7.0 | 17.0 | 36.0 |
| HGSNR-M12B-AD13.0 | HGSNR-M12G-AD13.0 | AD13.0 | M12 X 1.5 | 13.0 | 10.0 | 20.0 | 38.0 |
| HGSNR-M16B-AD13.0 | HGSNR-M16G-AD13.0 | AD13.0 | M16 X 1.5 | 13.5 | 10.0 | 20.0 | 38.0 |
| HGSNR-M16B-AD15.8 | HGSNR-M16G-AD15.8 | AD15.8 | M16 X 1.5 | 13.5 | 12.0 | 23.0 | 41.0 |
| HGSNR-M20B-AD15.8 | HGSNR-M20G-AD15.8 | AD15.8 | M20 X 1.5 | 13.5 | 12.0 | 23.0 | 41.0 |
| HGSNR-M20B-AD18.5 | HGSNR-M20G-AD18.5 | AD18.5 | M20 X 1.5 | 13.5 | 14.5 | 26.0 | 43.0 |
| HGSNR-M20B-AD21.2 | HGSNR-M20G-AD21.2 | AD21.2 | M20 X 1.5 | 14.5 | 17.0 | 29.5 | 47.0 |
| HGSNR-M22B-AD21.2 | HGSNR-M22G-AD21.2 | AD21.2 | M22 X 1.5 | 14.5 | 17.0 | 29.5 | 47.0 |
| HGSNR-M25B-AD21.2 | HGSNR-M25G-AD21.2 | AD21.2 | M25 X 1.5 | 14.5 | 17.0 | 29.5 | 47.0 |
| HGSNR-M25B-AD28.5 | HGSNR-M25G-AD28.5 | AD28.5 | M25 X 1.5 | 16.0 | 23.5 | 37.0 | 50.0 |
| HGSNR-M32B-AD28.5 | HGSNR-M32G-AD28.5 | AD28.5 | M32 X 1.5 | 16.0 | 23.5 | 37.0 | 50.0 |
| HGSNR-M32B-AD34.5 | HGSNR-M32G-AD34.5 | AD34.5 | M32 X 1.5 | 17.0 | 30.0 | 44.0 | 56.0 | HGSNR-M40B-AD34.5 | HGSNR-M40G-AD34.5 | AD34.5 | M40 X 1.5 | 17.0 | 30.0 | 44.0 | 56.0 |
| HGSNR-M40B-AD42.5 | HGSNR-M40G-AD42.5 | AD42.5 | M40 X 1.5 | 26.0 | 36.5 | 52.0 | 65.0 |
| HGSNR-M50B-AD42.5 | HGSNR-M50G-AD42.5 | AD42.5 | M50 X 1.5 | 26.0 | 36.5 | 52.0 | 65.0 |
| HGSNR-M50B-AD54.5 | HGSNR-M50G-AD54.5 | AD54.5 | M50 X 1.5 | 28.5 | 48.0 | 64.0 | 68.5 |
| HGSNR-M63B-AD54.5 | HGSNR-M63G-AD54.5 | AD54.5 | M63 X 1.5 | 28.5 | 48.0 | 64.0 | 68.5 |
HGSNR-G
| 产品编号 | 产品编号 | 适配软管 | 螺纹规格 | 螺纹长度 | 孔径 | 外径 | 整体长度 |
| 黑色 | 灰色 | 外径Φ | 管螺纹 G | C mm | ΦI mm | ΦB mm | D mm |
| HGSNR-G1/4B-AD10.0 | HGSNR-G1/4G-AD10.0 | AD10.0 | G1/4 | 12.5 | 7.0 | 17.0 | 36.0 |
| HGSNR-G3/8B-AD13.0 | HGSNR-G3/8G-AD13.0 | AD13.0 | G3/8 | 13.5 | 10.0 | 20.0 | 38.0 |
| HGSNR-G3/8B-AD15.8 | HGSNR-G3/8G-AD15.8 | AD15.8 | G3/8 | 13.5 | 12.0 | 23.0 | 41.0 |
| HGSNR-G1/2B-AD15.8 | HGSNR-G1/2G-AD15.8 | AD15.8 | G1/2 | 13.5 | 12.0 | 23.0 | 41.0 |
| HGSNR-G1/2B-AD18.5 | HGSNR-G1/2G-AD18.5 | AD18.5 | G1/2 | 13.5 | 14.5 | 26.0 | 43.0 |
| HGSNR-G1/2B-AD21.2 | HGSNR-G1/2G-AD21.2 | AD21.2 | G1/2 | 14.5 | 17.0 | 29.5 | 47.0 |
| HGSNR-G3/4B-AD21.2 | HGSNR-G3/4G-AD21.2 | AD21.2 | G3/4 | 14.5 | 17.0 | 29.5 | 47.0 |
| HGSNR-G3/4B-AD28.5 | HGSNR-G3/4G-AD28.5 | AD28.5 | G3/4 | 16.0 | 23.0 | 37.0 | 50.0 |
| HGSNR-G1B-AD28.5 | HGSNR-G1G-AD28.5 | AD28.5 | G1 | 16.0 | 23.0 | 37.0 | 50.0 |
| HGSNR-G1B-AD34.5 | HGSNR-G1G-AD34.5 | AD34.5 | G1 | 17.5 | 30.0 | 44.0 | 56.0 |
| HGSNR-G1 1/4B-AD34.5 | HGSNR-G1 1/4G-AD34.5 | AD34.5 | G1 1/4 | 17.5 | 30.0 | 44.0 | 56.0 |
| HGSNR-G1 1/4B-AD42.5 | HGSNR-G1 1/4G-AD42.5 | AD42.5 | G1 1/4 | 26.0 | 36.5 | 52.0 | 65.0 |
| HGSNR-G1 1/2B-AD42.5 | HGSNR-G1 1/2G-AD42.5 | AD42.5 | G1 1/2 | 26.0 | 36.5 | 52.0 | 65.0 |
| HGSNR-G1 1/2B-AD54.5 | HGSNR-G1 1/2G-AD54.5 | AD54.5 | G1 1/2 | 28.5 | 48.0 | 64.0 | 68.5 |
| HGSNR-G2B-AD54.5 | HGSNR-G2G-AD54.5 | AD54.5 | G2 | 28.5 | 48.0 | 64.0 | 68.5 |
