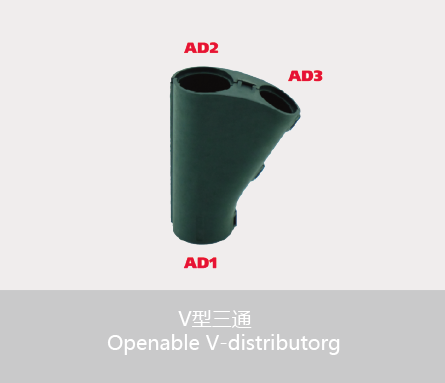

可开式V型三通
HGV
颜色：黑色和灰色
材料：尼龙（PA）
温度：-40℃~110℃
阻燃等级: V2（UL94）
产品介绍：用于连接三段塑料波纹软管，良好的抗拉强度。
应用范围：对工业电气装置上的软管进行Y形走向连接。
产品参数
HGV
| 产品编号 | 产品编号 | 适配软管 外径Φ | H mm | W mm |
| 黑色 | 灰色 | AD1 - AD2 - AD3 | ||
| HGV-AD101010B | HGV-AD101010G | AD10.0-10.0-10.0 | 54.6 | 37.1 |
| HGV-AD131010B | HGV-AD131010G | AD13.0-10.0-10.0 | 54.6 | 37.1 |
| HGV-AD131310B | HGV-AD131310G | AD13.0-13.0-10.0 | 54.6 | 37.1 |
| HGV-AD131313B | HGV-AD131010G | AD13.0-13.0-13.0 | 54.6 | 37.1 |
| HGV-AD151310B | HGV-AD151310G | AD15.8-13.0-10.0 | 55.0 | 39.8 |
| HGV-AD151313B | HGV-AD151313G | AD15.8-13.0-13.0 | 55.0 | 39.8 |
| HGV-AD151510B | HGV-AD151510G | AD15.8-15.8-10.0 | 55.0 | 39.8 |
| HGV-AD151513B | HGV-AD151513G | AD15.8-15.8-13.0 | 55.0 | 39.8 |
| HGV-AD211010B | HGV-AD211010G | AD21.2-10.0-10.0 | 42.3 | 39.8 |
| HGV-AD211310B | HGV-AD211310G | AD21.2-13.0-10.0 | 42.3 | 41.0 |
| HGV-AD211313B | HGV-AD211313G | AD21.2-13.0-13.0 | 42.3 | 41.0 |
| HGV-AD211510B | HGV-AD211510G | AD21.2-15.8-10.0 | 48.2 | 39.6 |
| HGV-AD211513B | HGV-AD211513G | AD21.2-15.8-13.0 | 48.2 | 39.6 |
| HGV-AD212110B | HGV-AD212110G | AD21.2-21.2-10.0 | 57.9 | 44.9 |
| HGV-AD212113B | HGV-AD212113G | AD21.2-21.2-13.0 | 57.9 | 44.9 |
| HGV-AD212115B | HGV-AD212115G | AD21.2-21.2-15.8 | 63.5 | 47.5 |
| HGV-AD282113B | HGV-AD282113G | AD28.5-21.2-13.0 | 53.5 | 49.0 |
| HGV-AD282115B | HGV-AD282115G | AD28.5-21.2-15.8 | 53.5 | 49.0 |
| HGV-AD282813B | HGV-AD282813G | AD28.5-28.5-13.0 | 67.0 | 56.5 |
| HGV-AD282815B | HGV-AD282815G | AD28.5-28.5-15.8 | 67.0 | 56.5 |
| HGV-AD282821B | HGV-AD282821G | AD28.5-28.5-21.2 | 76.5 | 50.0 |
| HGV-AD342828B | HGV-AD342828G | AD34.5-28.5-28.5 | 88.0 | 68.4 |
