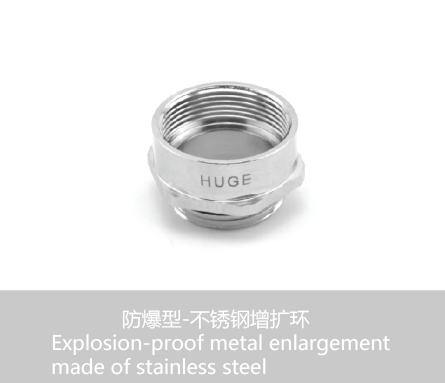

防爆型-不锈钢增扩环
HG-EWS
材料：不锈钢304
产品介绍：用于过渡连接。
应用范围：适用于同一种类的螺纹形式。
产品参数
HG-EWS-Exd-M
| 产品编号 | 外螺纹规格 | 内螺纹规格 | 外螺纹长度L1 mm | 总长度L mm |
| 公制 Metr. | 公制 Metr. | |||
| HG-EWS-Exd-M12/M16 | M12 X 1.5 | M16 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M16/M18 | M16 X 1.5 | M18 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M16/M20 | M16 X 1.5 | M20 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M18/M20 | M18 X 1.5 | M20 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M20/M25 | M20 X 1.5 | M25 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M25/M30 | M25 X 1.5 | M30 X 2.0 | 15.0 | 33.0 |
| HG-EWS-Exd-M25/M32 | M25 X 1.5 | M32 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M30/M36 | M30 X 2.0 | M36 X 2.0 | 15.0 | 33.0 |
| HG-EWS-Exd-M32/M40 | M32 X 1.5 | M40 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M36/M48 | M36 X 2.0 | M48 X 2.0 | 15.0 | 33.0 |
| HG-EWS-Exd-M40/M50 | M40 X 1.5 | M50 X 1.5 | 15.0 | 33.0 |
| HG-EWS-Exd-M50/M63 | M50 X 1.5 | M63 X 1.5 | 15.0 | 33.0 |
HG-EWS-Exd-PG
| 产品编号 | 外螺纹规格 | 内螺纹规格 | 外螺纹长度L1 mm | 总长度L mm |
| 德制 PG | 德制 PG | |||
| HG-EWS-Exd-PG7/PG9 | PG7 | PG9 | 15.0 | 33.0 |
| HG-EWS-Exd-PG9/PG11 | PG9 | PG11 | 15.0 | 33.0 |
| HG-EWS-Exd-PG9/PG13.5 | PG9 | PG13.5 | 15.0 | 33.0 |
| HG-EWS-Exd-PG11/PG13.5 | PG11 | PG13.5 | 15.0 | 33.0 |
| HG-EWS-Exd-PG11/PG16 | PG11 | PG16 | 15.0 | 33.0 |
| HG-EWS-Exd-PG11/PG21 | PG11 | PG21 | 15.0 | 33.0 |
| HG-EWS-Exd-PG13.5/PG16 | PG13.5 | PG16 | 15.0 | 33.0 |
| HG-EWS-Exd-PG13.5/PG21 | PG13.5 | PG21 | 15.0 | 33.0 |
| HG-EWS-Exd-PG16/PG21 | PG16 | PG21 | 15.0 | 33.0 |
| HG-EWS-Exd-PG16/PG29 | PG16 | PG29 | 15.0 | 33.0 |
| HG-EWS-Exd-PG21/PG29 | PG21 | PG29 | 15.0 | 33.0 |
| HG-EWS-Exd-PG29/PG36 | PG29 | PG36 | 15.0 | 33.0 |
| HG-EWS-Exd-PG36/PG42 | PG36 | PG42 | 15.0 | 33.0 |
| HG-EWS-Exd-PG42/PG48 | PG42 | PG48 | 15.0 | 33.0 |
